Antiference 3 Way 75 Series Masthead Splitter


Manufacturer: Antiference

Product Information

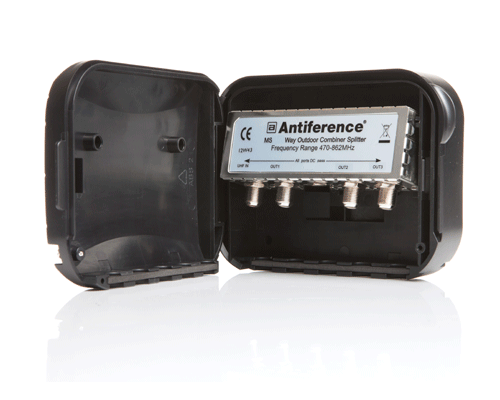

New range of masthead splitter/combiners for TV distribution systems. Featuring a weatherproof housing, fully screened with F connectors & DC pass on all ports. Can be mast or wall mounted.

  MS02 MS03 MS04 MS06 MS08
No. of inputs 1 1 1 1 1
No. of outputs 2 3 4 6 8
Frequency range 470-862MHz 470-862MHz 470-862MHz 470-862MHz 470-862MHz
Insertion loss >3.5dB >6dB >8dB >12dB >16dB
DC pass All ports 12v 100mA All ports  12v 100mA All ports 12v 100mA All ports 12v 100mA All ports 12v 100mA
Isolation ports >20dB >30dB >30dB >30dB >30dB
Weight 254g 261g 269g
Dimensions (LxWxH) mm 145x115x65 145x115x65 145x115x65


Product Code: ANTMS03

Manufacturers Product Code: MS03
