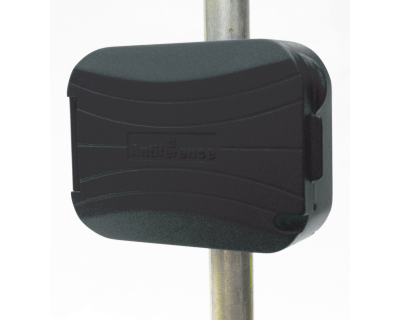

Antiference 4 Way Masthead Kit MHK4

Product Information

New range of masthead amplifier kits featuring F connectors, 'power from any port' function, fully screened, variable low-high gain.

Supplied with PSU.

  MHK1 MHK2 MHK4 MHK6 MHK8
No. of inputs 1 1 1 1 1
No. of outputs 1 2 4 6 8
Frequency range 470-862MHz 470-862MHz 470-862MHz 470-862MHz 470-862MHz
Gain 1-20dB 1-20dB 1-20dB 1-20dB 1-20dB
Noise max >2.5dB >2.5dB >2.5dB >2.5dB >2.5dB
Max output 102dB 94dB 94dB 94dB 94dB
Power requirement 40mA 40mA 40mA 40mA 40mA
Dimensions



Product Code: ANTMHK4

Manufacturers Product Code: MHK4LTE
